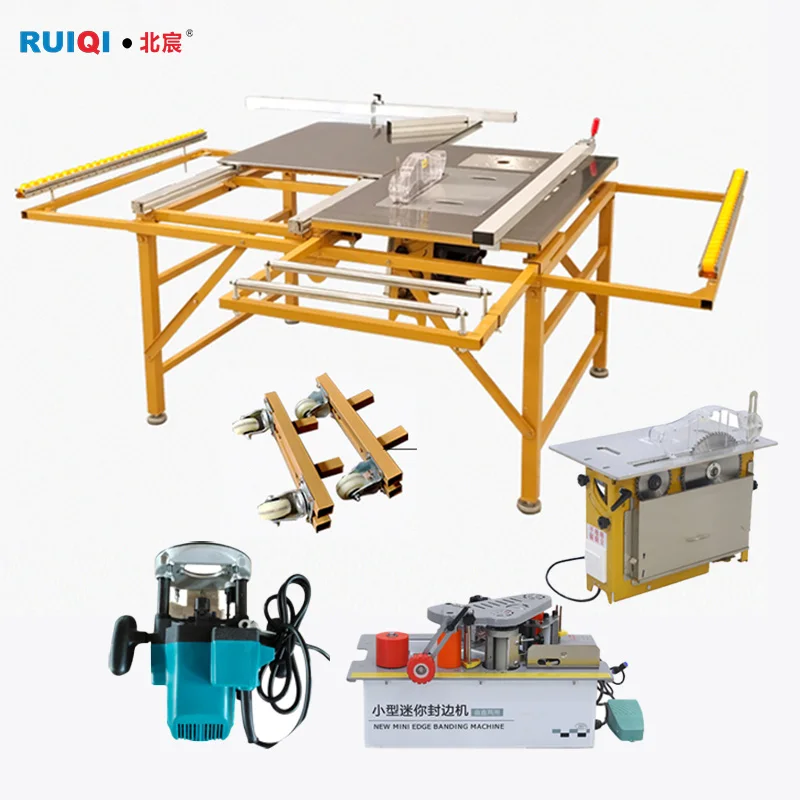

Products Description JT160 wood cutting table saw woodworking portable folding panel saw 45/90 degree wood cutting machine Portable Folding Woodworking Table Saw1. High efficiency:Aluminum alloy flip plate. no adjustment 45/90 degrees. independent switch. with aluminum alloy chip integratedsub and master saw. good dust absorption effect. 2. Dust protection cover:The protective cover can provide safety protection […]
Model | JT160 |
J2 Non dust Male and Female Saw | |
Total power | 6200W |
Maximum plank cutting length and thickness | 2.44M.4CM |
Main saw power and speed | 3000W.3800r/min |
Main saw diameter | 20CM |
Sub saw power and speed | 2000W.13000r/min |
Vacuum cleaner power | 1200W |
Product weight | 55KG+22KG |
Track width. length | 8CM.100CM .double track |
Product Size | Folded size of saw table 100*72*30CM Expanded size of saw table250*205*75CM Male and Female Sawsize50*30*38CM |
Package Size | Saw table wooden box 137*97*95CM (heightened bottom corner Male and Female Saw wooden case 57*37*45CM(Elevated bottom corner) |
Model | JT160 PRO | ||||||||
Equipped with J2 Dust-free Male and Female Saw+Saw Table Edge Banding Machine | |||||||||
Total power | Male and Female Saw Power 6200W | Edge banding machine power 1000W | |||||||
Maximum plank cutting length and thickness | 2.44M.4CM | Standard features | Curved and straight edge banding. manual push plate | Voltage | 220V/380V/ customization | ||||
Main saw power and speed | 3000W.3800r/min | Minimum length of sheet | 25CM | Minimum width of sheet | 5CM | ||||
Main saw diameter | 20CM | Edge banding height | 0-50MM | Edge banding thickness | 0.3-3MM | ||||
Sub saw power and speed | 2000W.13000r/min | Edge power/speed | 20W | Air source pressure | 0.5-0.8Mpa | ||||
Vacuum cleaner power | 1200W | Glue pot capacity | 1000ml | ||||||
Product weight | 55KG+22KG+15KG | ||||||||
Track width. length | 8CM.100CM .double track | ||||||||
Product Size | folding saw table size100*72*30CM Saw table unfoldedsize250*205*75CM Male and Female Sawsize50*30*38CM Banding Machine size54*35*33CM | ||||||||
Package Size | Saw table wooden box 137*97*95CM (heightened bottom corner Male and Female Saw wooden box 57*37*45CM (heightened bottom corner) edge banding machine size carton 54*35*33CM | ||||||||
* Detailed technical specifications vary by model. Contact us for the full parameter sheet and customization options.
Heavy-duty wooden crate with moisture-proof lining and steel strapping. Seaworthy standard for safe ocean freight.
Standard models: 15-20 working days. Custom OEM orders: 25-35 working days from deposit confirmation.
FOB Qingdao / Tianjin. EXW, CIF available. T/T, L/C, Western Union accepted. Flexible payment terms for long-term partners.
We export to 100+ countries across Europe (Germany, Spain, Italy), Americas (USA, Mexico, Brazil, Argentina), Southeast Asia (Vietnam, Indonesia, Thailand), Africa (Nigeria, Egypt, South Africa), and the Middle East. Full customs documentation and export compliance support included.
Your logo on machine body, control panel and packaging. Full white-label production available.
Support 110V/60Hz, 220V/50Hz, 380V/50Hz, 440V/60Hz and other local electrical standards.
Modify table size, motor power, cutting capacity and other parameters per your production requirements.
Control panel available in English, Spanish, French, Arabic, Russian and other languages on request.
Custom paint color, machine casing design and aesthetic modifications to match your brand identity.
Bundled tooling sets, spare parts kits, installation tools and custom accessories for your market needs.
Fill in your requirements and our sales team will respond within 24 hours with a formal quotation and full technical specifications.
