Furniture ZDSF400 High Speed Multi-Functional Wood Automatism Woodworking Edge Bander PVC Edge Banding Machine
Furniture ZDSF400 High Speed Multi-Functional Wood Automatism Woodworking Edge Bander PVC Edge Banding Machine
ISO 9001 CE CERTIFIED OEM/ODM FACTORY DIRECT
WOOD BASED PANELS MACHINERY, WOODWORKING MACHINERY

Furniture ZDSF400 High Speed Multi-Functional Wood Automatism Woodworking Edge Bander PVC Edge Banding Machine

Products Disply ZDSF400 high speed full straight automatic edge banding machine FEATURES??/FONT> *High speed *Upper and lower flexible scraping *Full straight *end cutting *fine trimming *polishing This machine is suitable for straight edge banding of fiberboard. particle board and other plate workpieces. The machine adopts high-quality motors. imported electrical components. serialized products. diversified customer choices. […]

Precision ±0.02mm
5 National Patents
Full OEM Support
24h Quote Response
WhatsApp Email Us
20 Years Experience
100+ Countries Exported
Secure B2B Trade

Products Disply

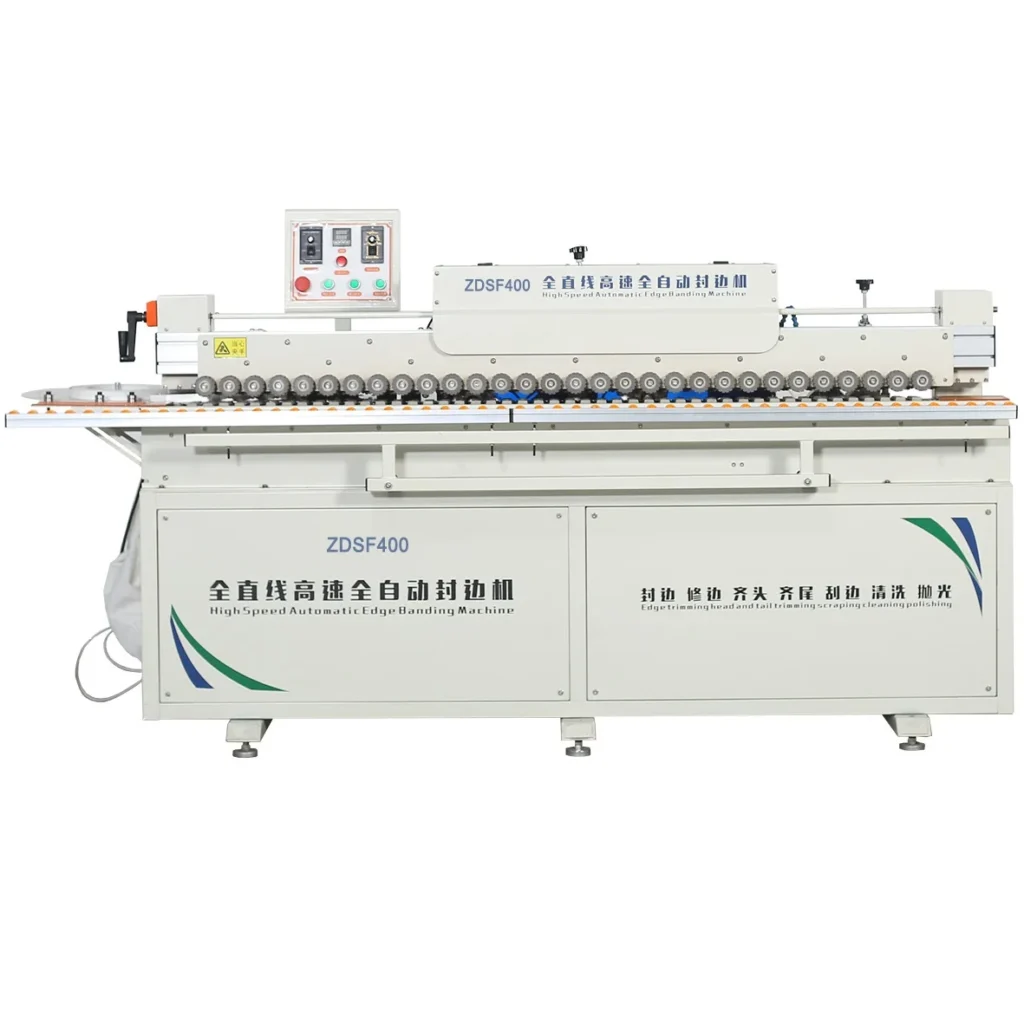

ZDSF400 high speed full straight automatic edge banding machine


FEATURES??/FONT>
*High speed
*Upper and lower flexible scraping
*Full straight
*end cutting
*fine trimming
*polishing
This machine is suitable for straight edge banding of fiberboard. particle board and other plate workpieces. The machine adopts high-quality motors. imported electrical components. serialized products. diversified customer choices. and features high accuracy and high efficiency.
Product Paramenters
Model
ZDSF400 automatic high speed full straight edge banding machine
Function
Gluing. end cutting. Trimming. scraping. polishing. vacuuming
Edge type
Straight lines
Voltage
220v50hz
Rated power
3kw
Rated air pressure
0.4-0.6mpa
Strip thickness
1-3mm
Sheet thickness
10-55mm
Sheet width
??0mm
Feed plate
0-14m/min
Conveyer belt
0-14m/min
Glue capacity
1000ml
Heating power
800w (5-10min)
Trimming power
800w*2 (24000rpm)
Polishing power
180w*2 (5500rpm)
Suction power
550w
Overall size
240*70*120cm
Machine weight
370kg
Product details
Both large and small plates can be sealed. let you no longer worry about choosing configuration.
The frame is made of aluminum alloy. use large size and high specification.
Upper and lower flexible scraping + glue removing spray device.
800W * 2 air-cooled spindle motor. the trimming is full of strength. and the noise is smaller.
Using a large polishing wheel with a diameter of 150mm
Double bearing rail chrome-plated rod structure. Increase the smoothness of the chain block. reduce the friction of the chain block. and increase the service life.
High precision position display. digital display to adjust the plate is more convenient.
The equipment comes with a vacuum fan. the central dust collection effect reaches 95%
Integrated lift and pressure beam. adjust the height of the pressure beam without running around on both sides.
Adopt 1 + 2 pressing wheel combination.
2 sets of elastic pressing combination . the side-band is more firmly attached.
Recommend Products
Packing & Delivery
Company Profile

ABOUT US

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a CNC machinery company in Lunjiao. Foshan
City.
Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. CNC nesting machine. CNC wood router. CNC six-sided drilling and milling processing center. CNC side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries. In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you
proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Technical Specifications

Machine Type
Wood Based Panels Machinery, Woodworking Machinery
Processing Precision
±0.02mm
Voltage Options
110V / 220V / 380V / 440V
Certification
ISO 9001 · CE
Control System
PLC / Digital Control
Warranty
12 Months + Spare Parts
Delivery Time
15-30 Working Days
OEM/ODM
Fully Supported
Export Standard
Seaworthy Export Packaging
Origin
Shandong, China

* Detailed technical specifications vary by model. Contact us for the full parameter sheet and customization options.

Shipping & Trade Terms

Export Packaging

Heavy-duty wooden crate with moisture-proof lining and steel strapping. Seaworthy standard for safe ocean freight.

Lead Time

Standard models: 15-20 working days. Custom OEM orders: 25-35 working days from deposit confirmation.

Trade Terms

FOB Qingdao / Tianjin. EXW, CIF available. T/T, L/C, Western Union accepted. Flexible payment terms for long-term partners.

Export Countries We Serve

We export to 100+ countries across Europe (Germany, Spain, Italy), Americas (USA, Mexico, Brazil, Argentina), Southeast Asia (Vietnam, Indonesia, Thailand), Africa (Nigeria, Egypt, South Africa), and the Middle East. Full customs documentation and export compliance support included.

OEM / ODM Customization

Custom Branding

Your logo on machine body, control panel and packaging. Full white-label production available.

Voltage Customization

Support 110V/60Hz, 220V/50Hz, 380V/50Hz, 440V/60Hz and other local electrical standards.

Specification Adjustment

Modify table size, motor power, cutting capacity and other parameters per your production requirements.

Multilingual Interface

Control panel available in English, Spanish, French, Arabic, Russian and other languages on request.

Color & Appearance

Custom paint color, machine casing design and aesthetic modifications to match your brand identity.

Accessory Packages

Bundled tooling sets, spare parts kits, installation tools and custom accessories for your market needs.
