Edge Banding Oblique Bevel Straight Line Woodworking Panel Furniture Pvc 45 Degree Automatic Edge Banding Machine

Products Description

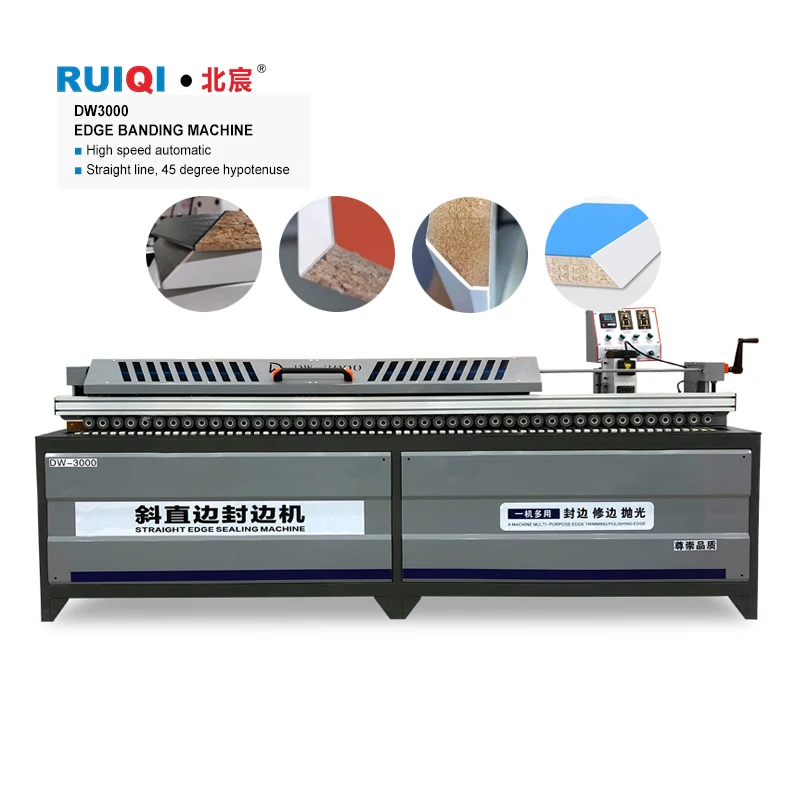

DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machine

The Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding is more obedient. 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor. the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor. with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line. the finish is better

Product Paramenters

Model	DW3000
Total power	11KW
Standard features	Plate milling. 30-90 degree edge banding. trimming. trimming. scraping and polishing. high-power vacuuming	Voltage	380V/415V
Minimum length of sheet	30CM	Minimum width of sheet	15CM
Edge banding height	0-50MM	Edge banding thickness	0.3-3MM
Pre-milled motor	2.2KW	Heating power	2.2KW*2
Edge power/speed	160W 0-12M/min	Air source pressure	0.5-0.7Mpa
Transmission power/speed	180W 0-12M/min	Glue pot capacity	4000ml
Trimming power/speed	2.2KW*2	Vacuum power	550W
Polishing power/speed	0.4KW*2
Product Size	29965130CM	Product weight	430KG
Package Size	31274115CM
Both oblique and straight. edge trimming and polishing. double hot air design. feeding auxiliary slide. 8 sets of oblique pressure wheels. automatic alignment. 45-degree pre-milling of the plate. edge banding with slots

Why Choose Us

Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.

FAQ

Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.

We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

Technical Specifications

Machine Type

Edge banding machine

Processing Precision

±0.02mm

Voltage Options

110V / 220V / 380V / 440V

Certification

ISO 9001 · CE

Control System

PLC / Digital Control

Warranty

12 Months + Spare Parts

Delivery Time

15-30 Working Days

OEM/ODM

Fully Supported

Export Standard

Seaworthy Export Packaging

Origin

Shandong, China

* Detailed technical specifications vary by model. Contact us for the full parameter sheet and customization options.

Shipping & Trade Terms

Export Packaging

Heavy-duty wooden crate with moisture-proof lining and steel strapping. Seaworthy standard for safe ocean freight.

Lead Time

Standard models: 15-20 working days. Custom OEM orders: 25-35 working days from deposit confirmation.

Trade Terms

FOB Qingdao / Tianjin. EXW, CIF available. T/T, L/C, Western Union accepted. Flexible payment terms for long-term partners.

Export Countries We Serve

We export to 100+ countries across Europe (Germany, Spain, Italy), Americas (USA, Mexico, Brazil, Argentina), Southeast Asia (Vietnam, Indonesia, Thailand), Africa (Nigeria, Egypt, South Africa), and the Middle East. Full customs documentation and export compliance support included.

OEM / ODM Customization

Custom Branding

Your logo on machine body, control panel and packaging. Full white-label production available.

Voltage Customization

Support 110V/60Hz, 220V/50Hz, 380V/50Hz, 440V/60Hz and other local electrical standards.

Specification Adjustment

Modify table size, motor power, cutting capacity and other parameters per your production requirements.

Multilingual Interface

Control panel available in English, Spanish, French, Arabic, Russian and other languages on request.

Color & Appearance

Custom paint color, machine casing design and aesthetic modifications to match your brand identity.

Accessory Packages

Bundled tooling sets, spare parts kits, installation tools and custom accessories for your market needs.
